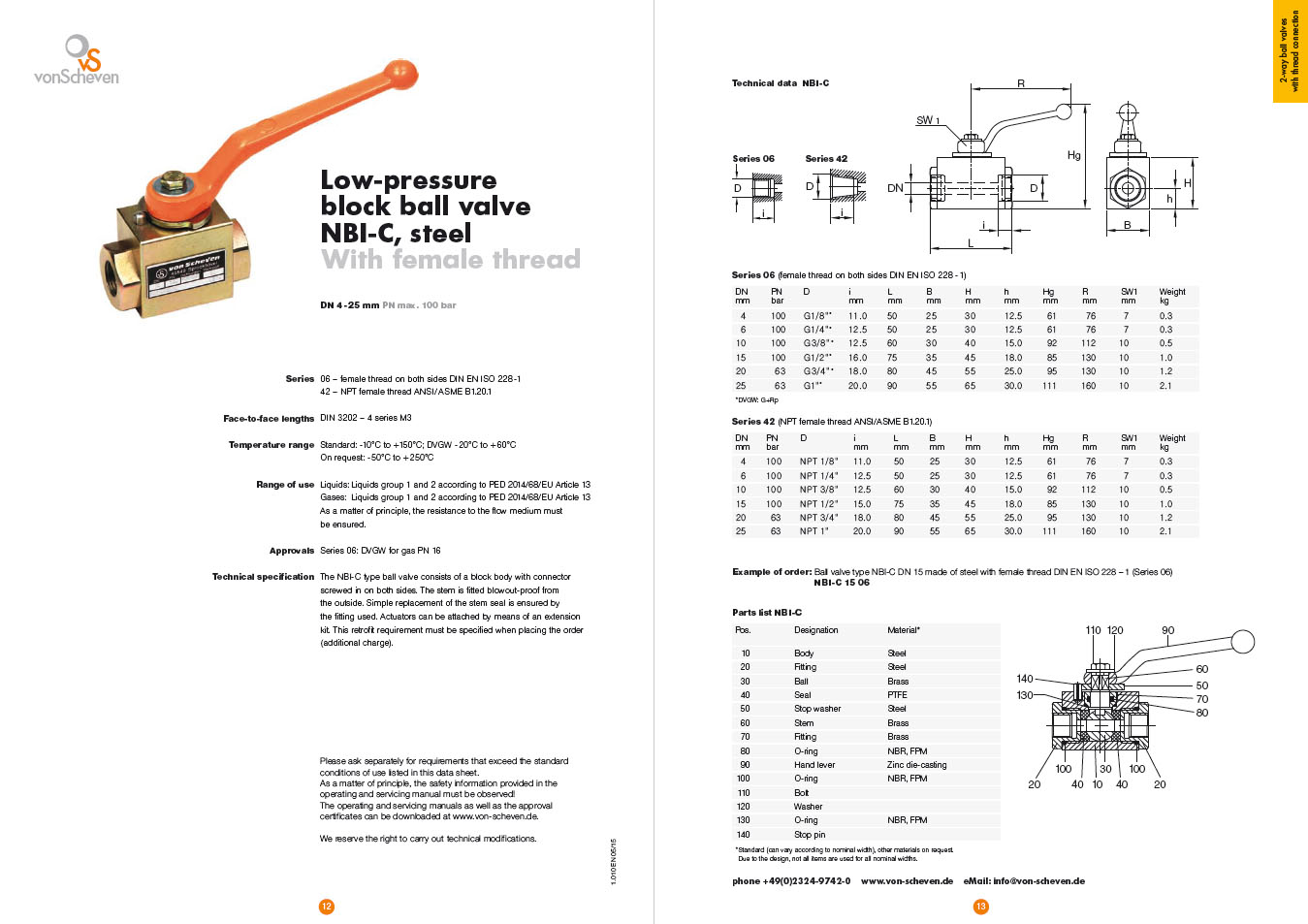

datasheet NBI-C

Product-Description

Low-pressure block ball valve NBI-C

Steel

With female thread

DN 4 -25

PN max. 100

Series

06 – female thread on both sides DIN EN ISO 228 -1
42 – NPT female thread ANSI /ASME B1.20.1

Face-to-face lengths

DIN 3202 – 4 series M3

Temperature range

Standard: -10°C to +150°C; DVGW -20°C to +60°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Approvals

Series 06: DVGW for gas PN 16

Technical specification

The NBI-C type ball valve consists of a block body with connector screwed in on both sides. The stem is fitted blowout-proof from the outside. Simple replacement of the stem seal is ensured by the fitting used. Actuators can be attached by means of an extension kit. This retrofit requirement must be specified when placing the order (additional charge).

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
