Your product

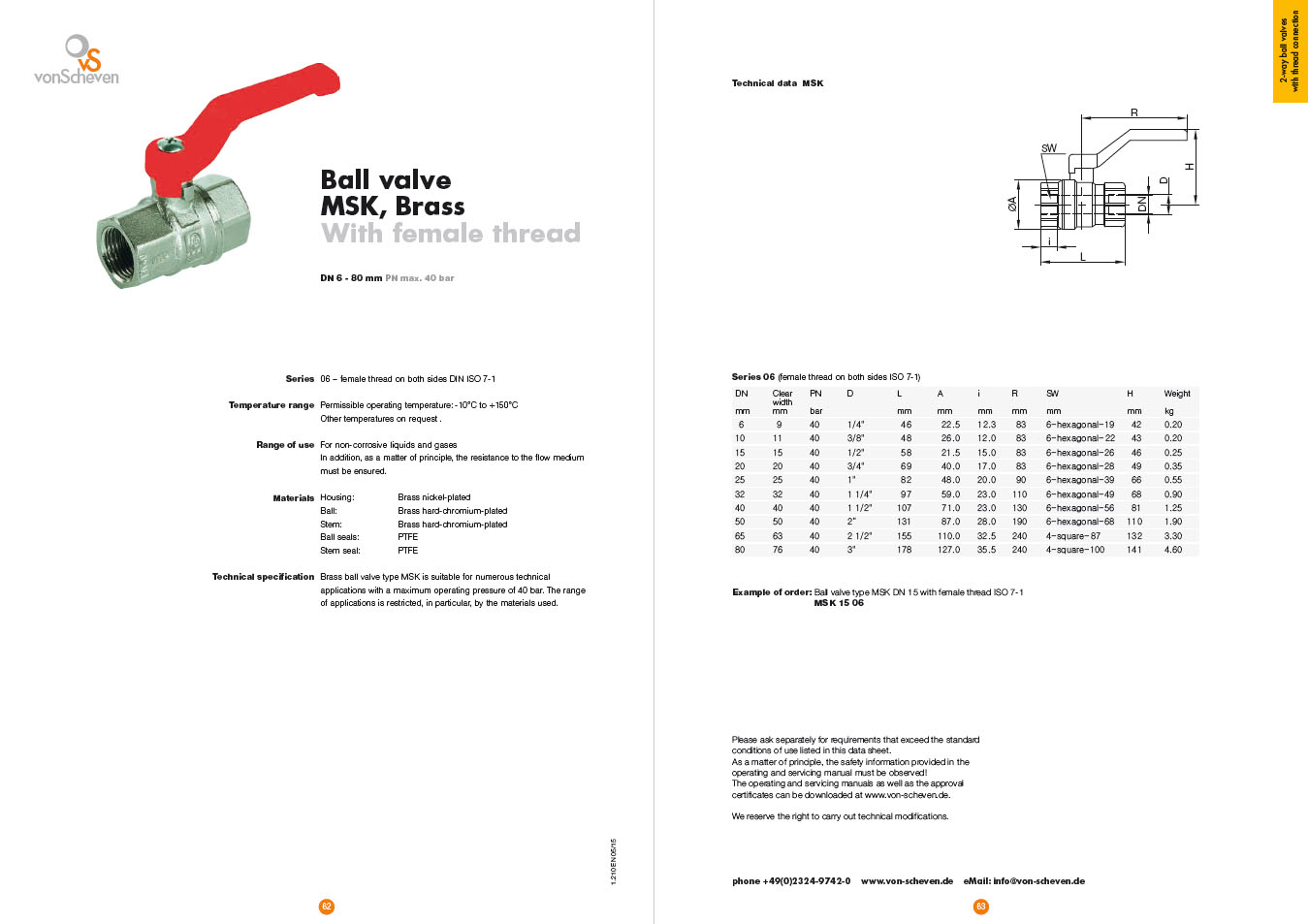

datasheet MSK

Product-Description

Ball valve MSK

Brass

With female thread

DN 6-80

PN max. 40

Series

06 – female thread on both sides DIN ISO 7-1

Temperature range

Permissible operating temperature: -10°C to +150°C
Other temperatures on request.

Range of use

For non-corrosive liquids and gases
In addition, as a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

Housing: Brass nickel-plated
Ball: Brass hard-chromium-plated
Stem: Brass hard-chromium-plated
Ball seals: PTFE
Stem seal: PTFE

Brass ball valve type MSK is suitable for numerous technical applications with a maximum operating pressure of 40 bar. The range of applications is restricted, in particular, by the materials used.

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
