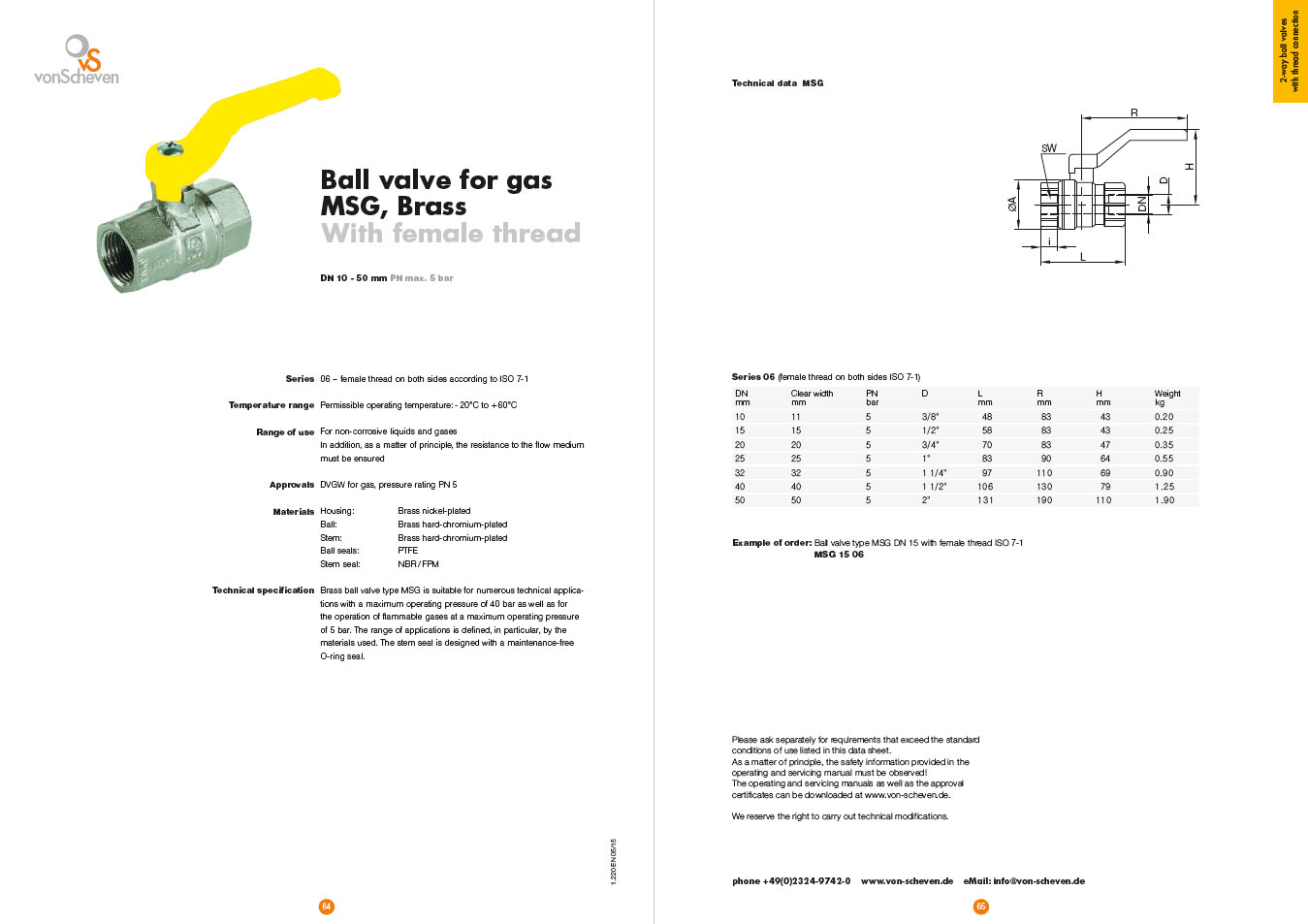

datasheet MSG

Product-Description

Ball valve for gas MSG

Brass

With female thread

DN 10-50

PN max. 5

Series

06 – female thread on both sides according to ISO 7-1

Temperature range

Permissible operating temperature: -20°C to +60°C

Range of use

For non-corrosive liquids and gases
In addition, as a matter of principle, the resistance to the flow medium must be ensured

Approvals

DVGW for gas, pressure rating PN 5

Technical specification

Housing: Brass nickel-plated
Ball: Brass hard-chromium-plated
Stem: Brass hard-chromium-plated
Ball seals: PTFE
Stem seal: NBR/ FPM

Brass ball valve type MSG is suitable for numerous technical applications with a maximum operating pressure of 40 bar as well as for the operation of flammable gases at a maximum operating pressure of 5 bar. The range of applications is defined, in particular, by the materials used. The stem seal is designed with a maintenance-free O-ring seal.

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
