Your product

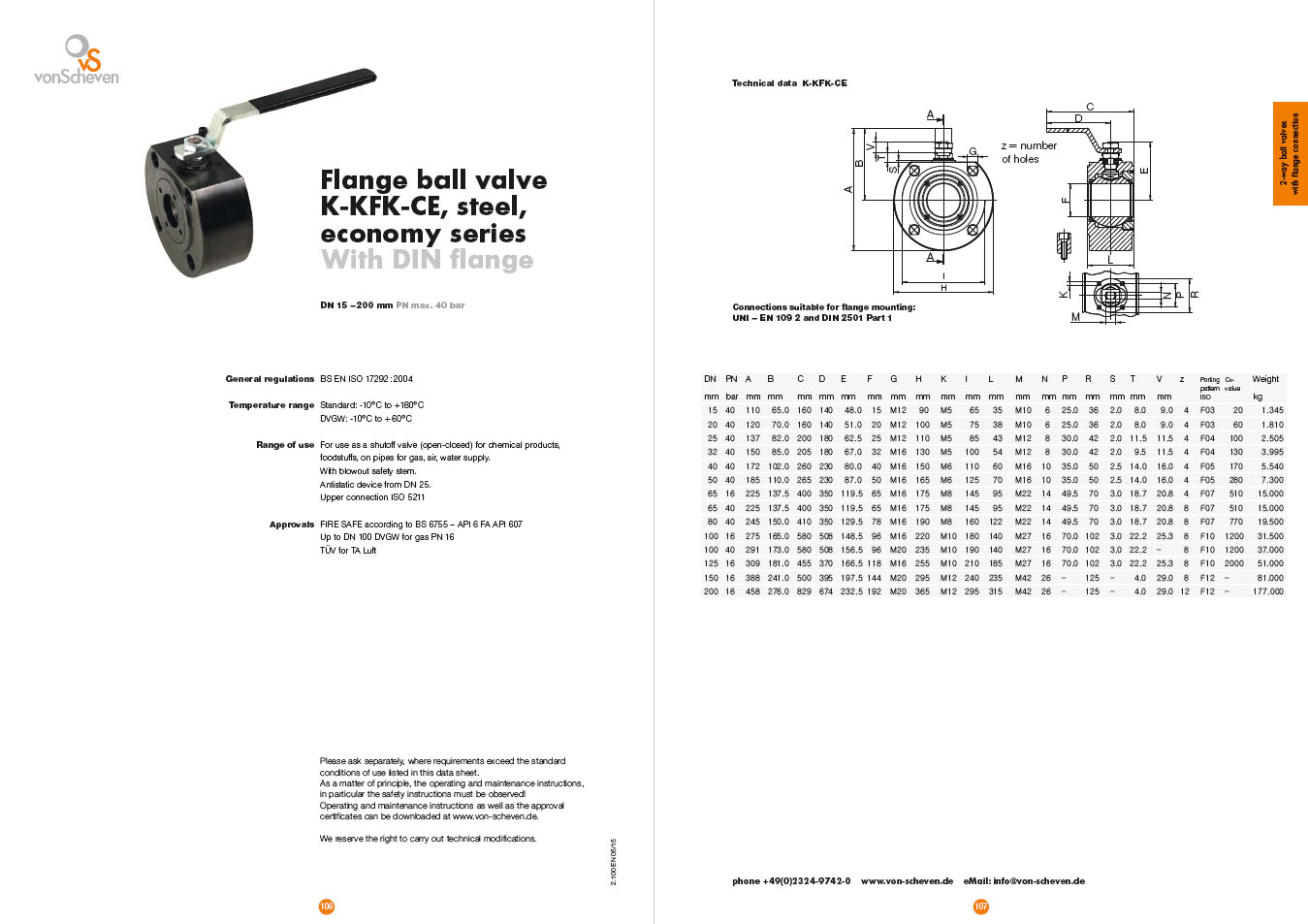

datasheet K-KFK-CE

Product-Description

Flange ball valve K-KFK-CE

Steel

Economy series

With DIN flange

DN 15-200

PN max. 40

Temperature range

Standard: -10ºC to +180ºC
DVGW: -10ºC to +60ºC

Range of use

For use as a shutoff valve (open-closed) for chemical products, foodstuffs, on pipes for gas, air, water supply.
With blowout safety stem.
Antistatic device from DN 25.
Upper connection ISO 5211

Approvals

FIRE SAFE according to BS 6755 – API 6 FA API 607
Up to DN 100 DVGW for gas PN 16
TÜV for TA Luft

Please ask separately, where requirements exceed the standard conditions of use listed in this data sheet. As a matter of principle, the operating and maintenance instructions, in particular the safety instructions must be observed! Operating and maintenance instructions as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
