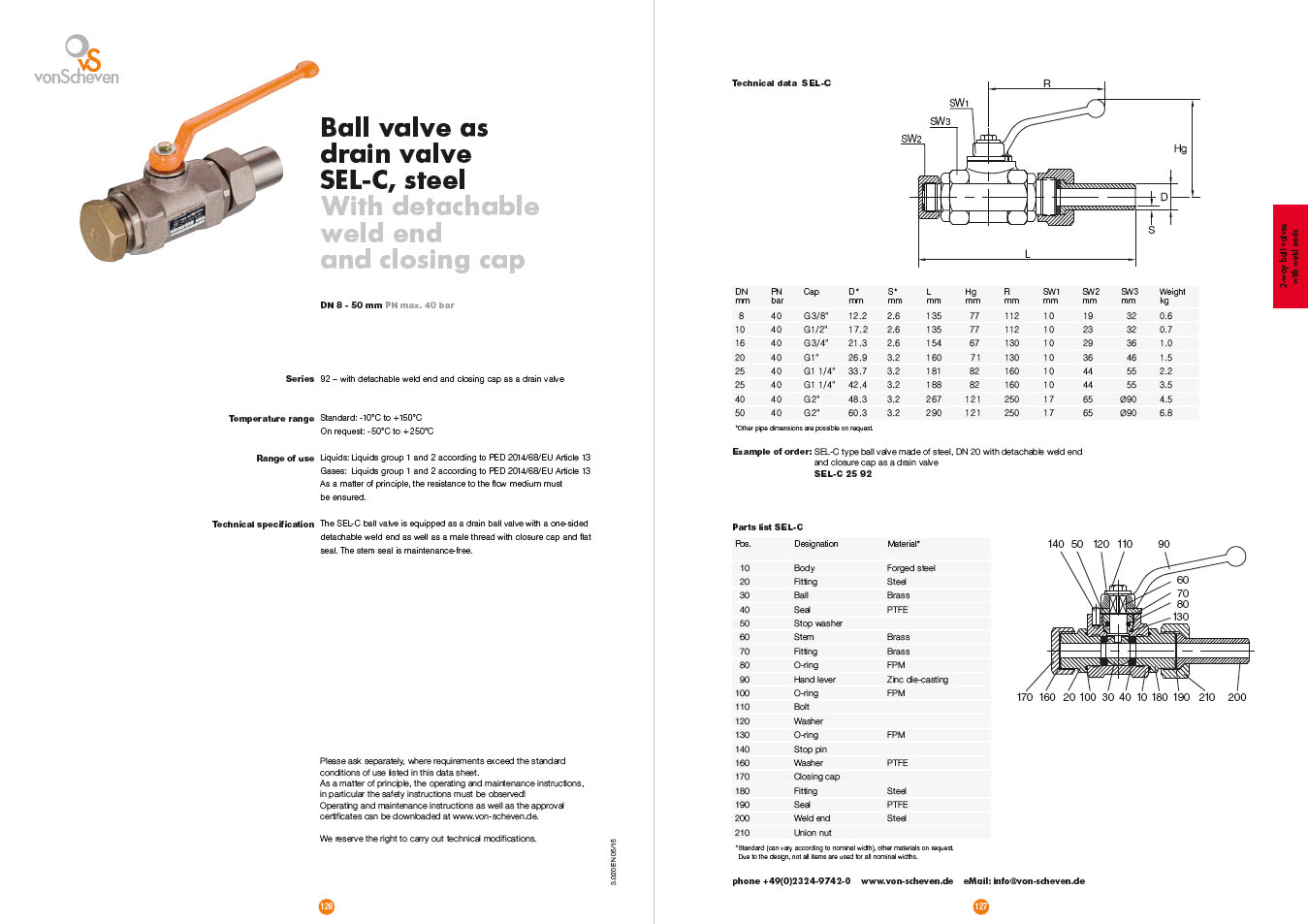

datasheet SEL-C

Product-Description

Ball valve as drain valve SEL-C

Steel

With detachable weld endand closing cap

DN 8-50

PN max. 40

Series

92 – with detachable weld end and closing cap as a drain valve

Temperature range

Standard: -10°C to +150°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

The SEL-C ball valve is equipped as a drain ball valve with a one-sided detachable weld end as well as a male thread with closure cap and flat seal. The stem seal is maintenance-free.

Please ask separately, where requirements exceed the standard conditions of use listed in this data sheet. As a matter of principle, the operating and maintenance instructions, in particular the safety instructions must be observed! Operating and maintenance instructions as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
