datasheet HSKA-D

Product-Description

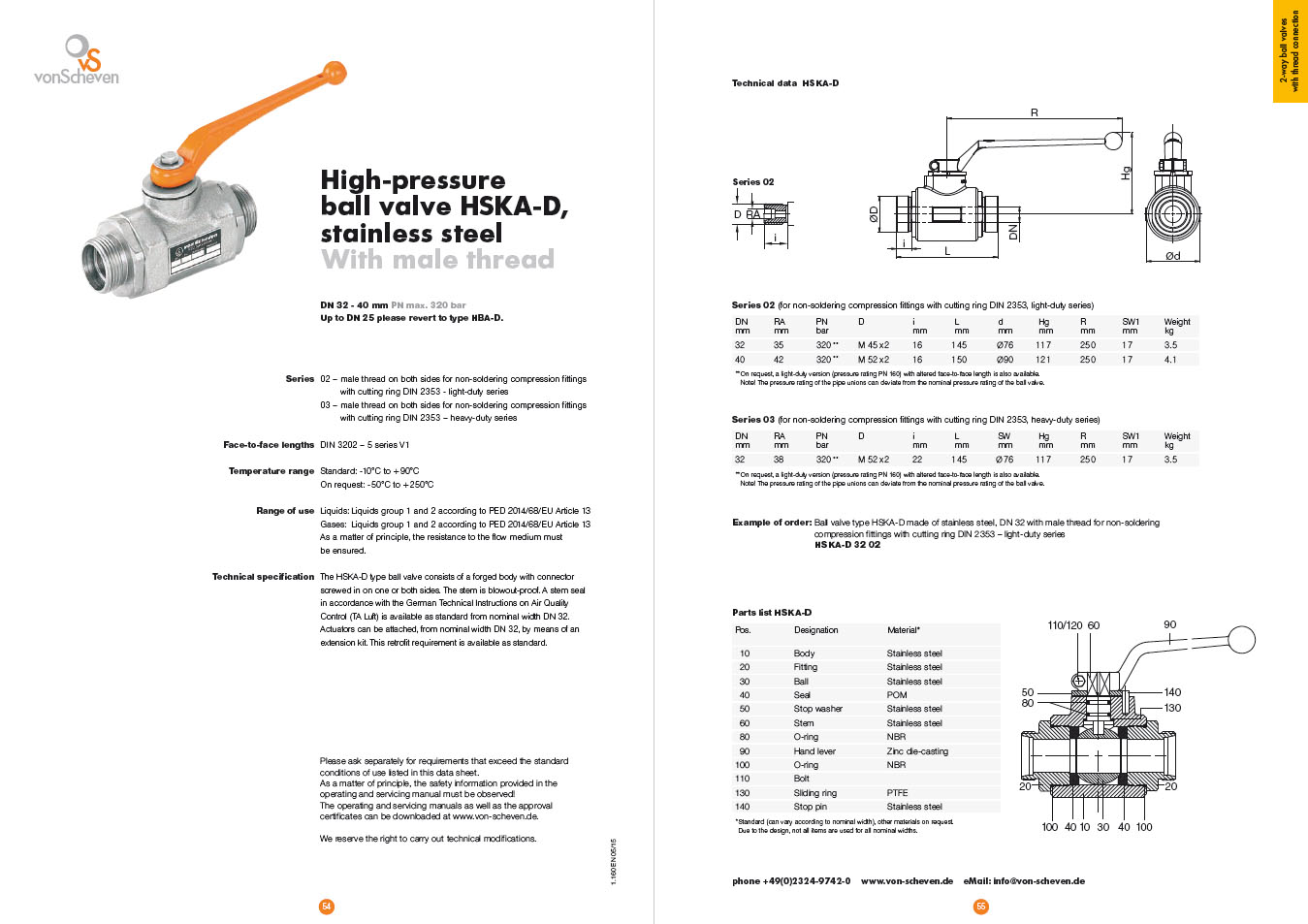

High-pressure ball valve HSKA-D

Stainless steel

With male thread

DN 32-40
Up to DN 25 please revert to type HBA-D.

PN max. 320

Series

02 – male thread on both sides for non-soldering compression fittings
with cutting ring DIN 2353 - light-duty series
03 – male thread on both sides for non-soldering compression fittings
with cutting ring DIN 2353 – heavy-duty series

Face-to-face lengths

DIN 3202 – 5 series V1

Temperature range

Standard: -10°C to +90°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

The HSKA-D type ball valve consists of a forged body with connector screwed in on one or both sides. The stem is blowout-proof. A stem seal in accordance with the German Technical Instructions on Air Quality Control (TA Luft) is available as standard from nominal width DN 32. Actuators can be attached, from nominal width DN 32, by means of an extension kit. This retrofit requirement is available as standard.

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
