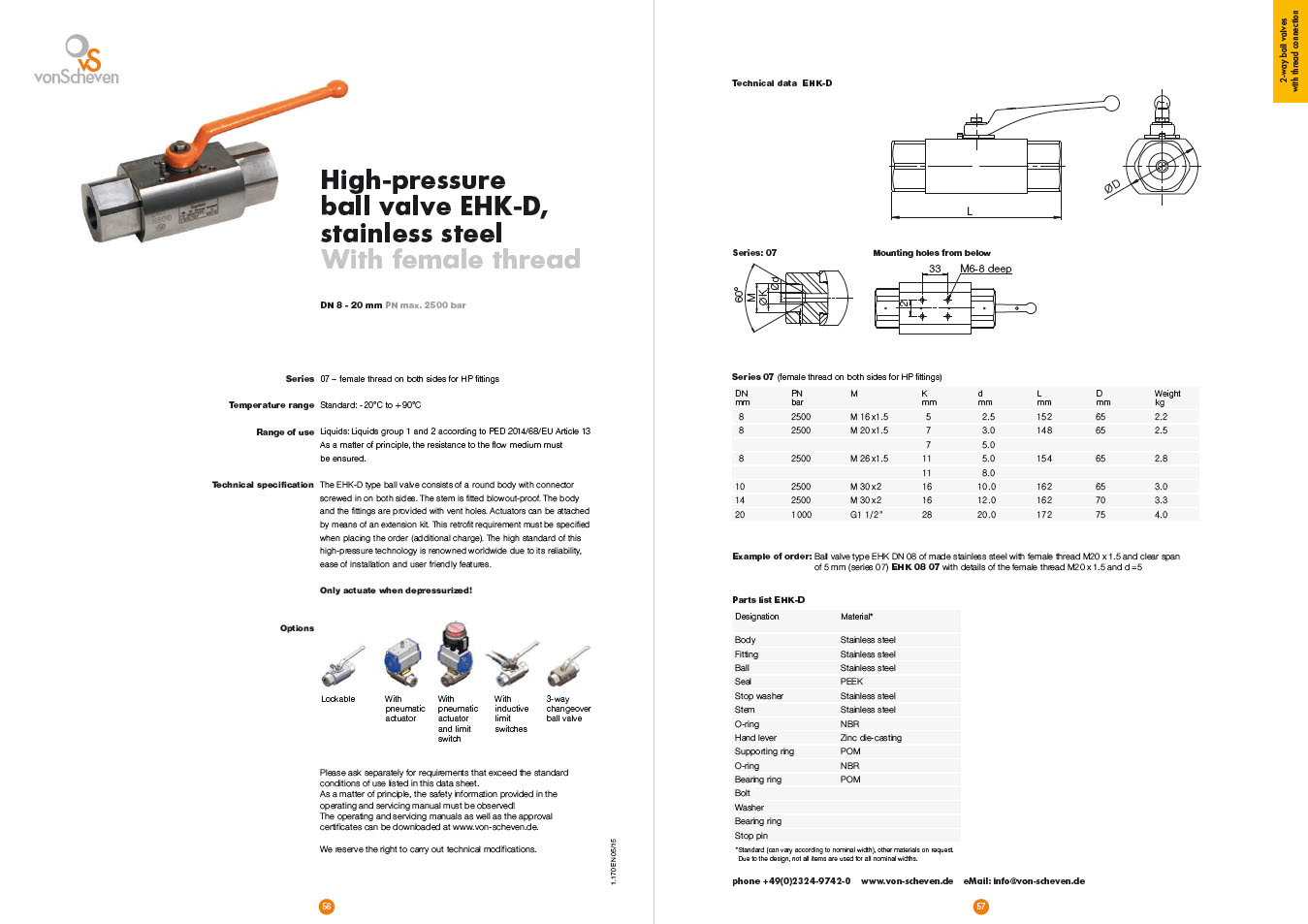

datasheet EHK-D

Product-Description

High-pressure ball valve EHK-D

Stainless steel

With female thread

DN 8-20

PN max. 2500

Series

07 – female thread on both sides for HP fittings

Temperature range

Standard: -20°C to +90°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

The EH K-D type ball valve consists of a round body with connector screwed in on both sides. The stem is fitted blowout-proof. The body and t he f ittings are provided with vent h oles. Actuators can be attached by means of an extension kit. This retrofit requirement must be specified when placing the order (additional charge). The high standard of this high-pressure te chnology is renowned worldwide due to its reliability, ease of installation and user friendly features.

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
