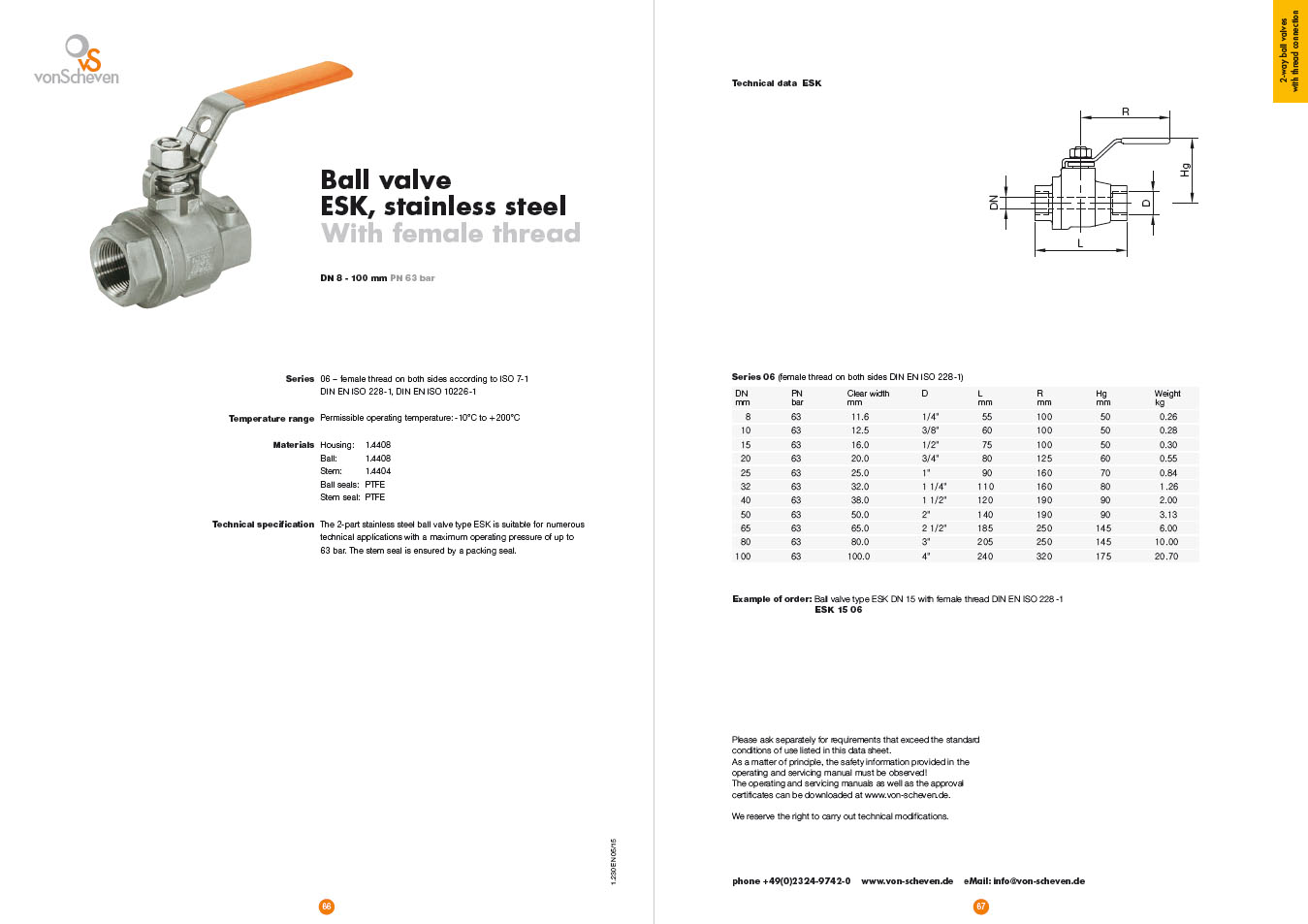

datasheet ESK

Product-Description

Ball valve ESK

Stainless steel

With female thread

DN 8-100

PN 63

Series

06 – female thread on both sides according to ISO 7-1
DIN EN ISO 228 -1, DIN EN ISO 10226 -1

Temperature range

Permissible operating temperature: -10°C to +200°C

Technical specification

Housing: 1.4408
Ball: 1.4408
Stem: 1.4404
Ball seals: PTFE
Stem seal: PTFE

The 2-part stainless steel ball valve type ESK is suitable for numerous technical applications with a maximum operating pressure of up to 63 bar. The stem seal is ensured by a packing seal.

Please ask separately for requirements that exceed the standard conditions of use listed in this data sheet. As a matter of principle, the safety information provided in the operating and servicing manual must be observed! The operating and servicing manuals as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
