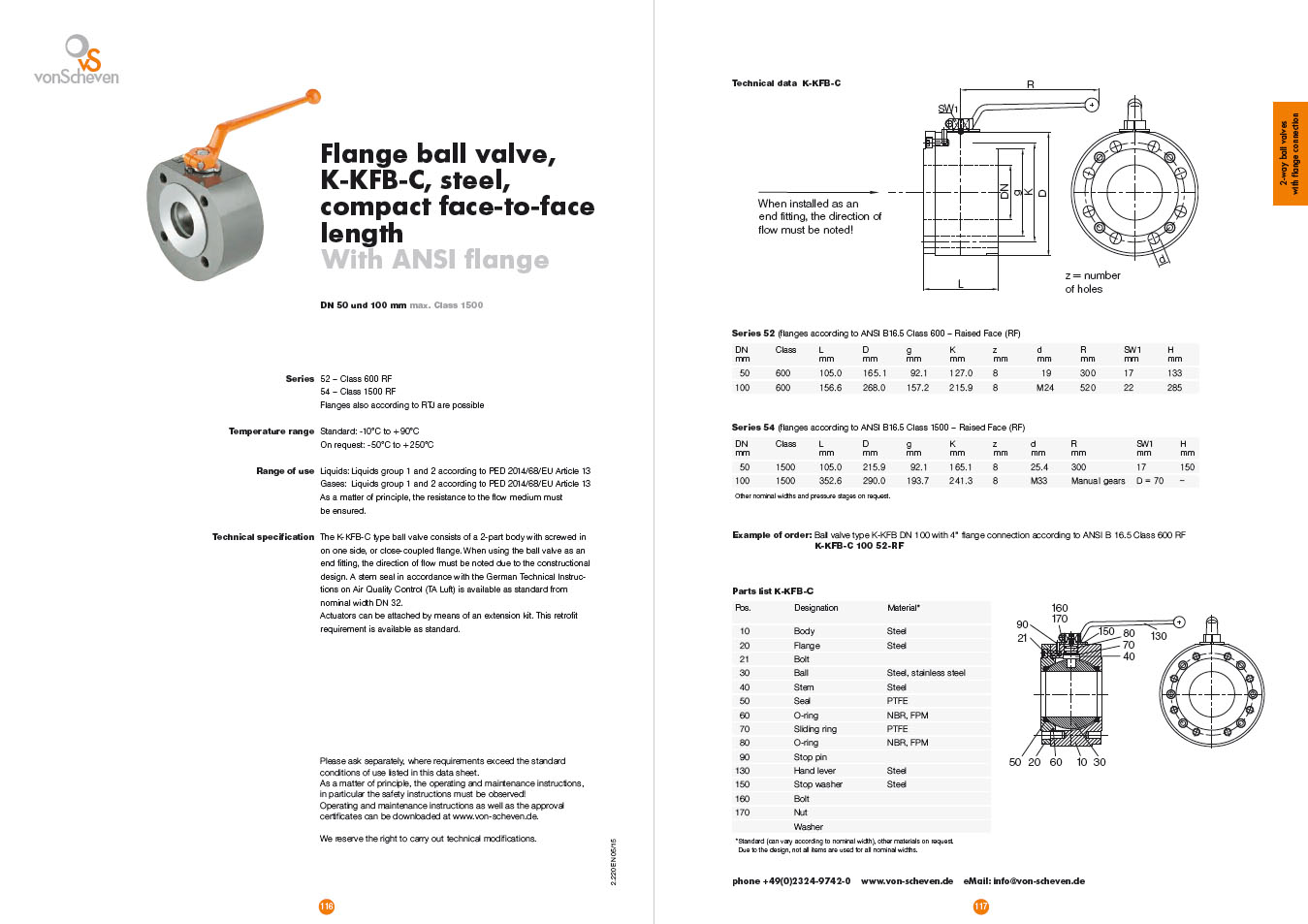

datasheet K-KFB-C

Product-Description

Flange ball valve K-KFB-C

Steel

Compact face-to-face length

With ANSI flange

DN 50 and 100

Max. Class 1500

Series

52 – Class 600 RF
54 – Class 1500 RF
Flanges also according to RTJ are possible

Temperature range

Standard: -10°C to +90°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

The K-KFB-C type ball valve consists of a 2-part body with screwed in on one side, or close-coupled flange. When using the ball valve as an end fitting, the direction of flow must be noted due to the constructional design. A stem seal in accordance with the German Technical Instructions on Air Quality Control (TA Luft) is available as standard from nominal width DN 32. Actuators can be attached by means of an extension kit. This retrofit requirement is available as standard.

Please ask separately, where requirements exceed the standard conditions of use listed in this data sheet. As a matter of principle, the operating and maintenance instructions, in particular the safety instructions must be observed! Operating and maintenance instructions as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
