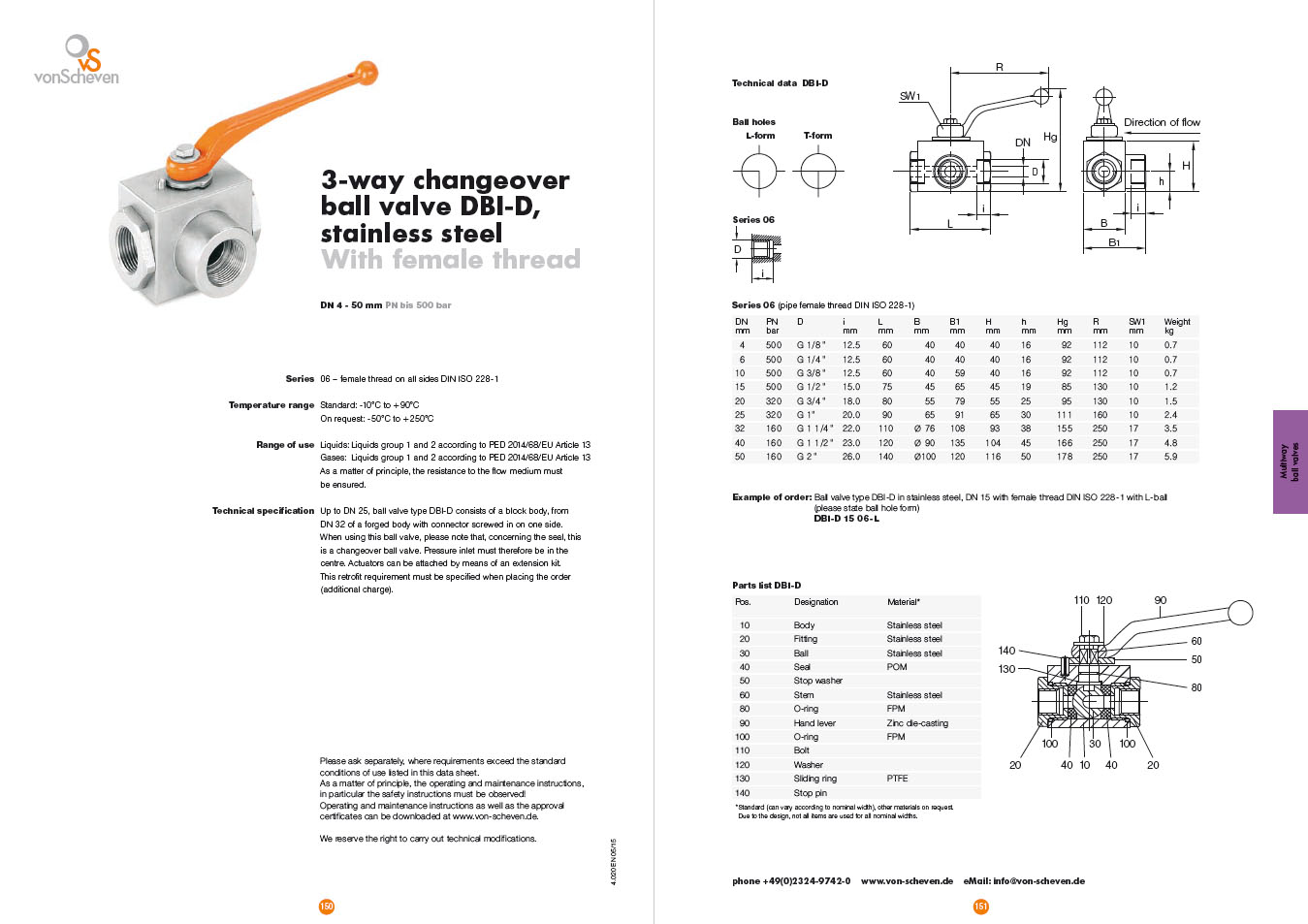

datasheet DBI-D

Product-Description

3-way changeover ball valve DBI-D

Stainless steel

With female thread

DN 4-50

PN max. 500

Series

06 – female thread on all sides DIN ISO 228 -1

Temperature range

Standard: -10°C to +90°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

Up to DN 25, ball valve type DBI-D consists of a block body, from DN 32 of a forged body with connector screwed in on one side. When using this ball valve, please note that, concerning the seal, this is a changeover ball valve. Pressure inlet must therefore be in the centre. Actuators can be attached by means of an extension kit. This retrofit requirement must be specified when placing the order (additional charge).

Please ask separately, where requirements exceed the standard conditions of use listed in this data sheet. As a matter of principle, the operating and maintenance instructions, in particular the safety instructions must be observed! Operating and maintenance instructions as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
