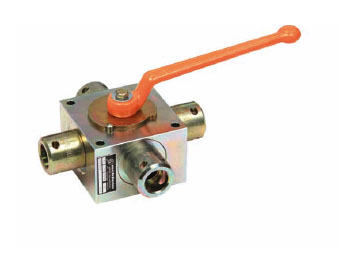

High Pressure Block Multiway Ball Valve HBDS-C
Technical Description
The ball valves HBDS-C, HBVS-C, HBDS-D and HBVS-D consist of a block housing with screwed-in connection pieces. Actuators can be mounted using a mounting kit. This retrofitting capability must be specified when ordering (additional charge).
Technical Data
Design Type
16 – all-sided socket connection according to DIN 20043
Connection Types
Steck-O socket
Nominal diameter
DN 10-25
Material
Steel
Pressure Ratings
PN max. 400
Temperature Range
Standard: -10°C to +90°C
On request: -50°C to +250°C
Application Range
Liquids: Fluid group 2 according to PED 2014/68/EU Article 13
Gases: Fluid group 2 according to PED 2014/68/EU Article 13
Resistance to the flow medium must always be guaranteed.
Gases: Fluid group 2 according to PED 2014/68/EU Article 13
Resistance to the flow medium must always be guaranteed.
