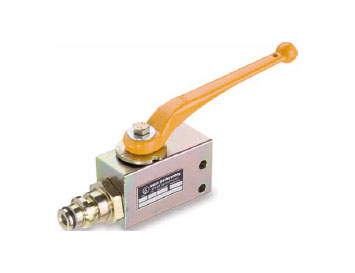

High pressure compact ball valve HBSK-C

Technical Description

The HBSK-C and SIBK-C ball valves are designed as compact ball valves with a fixed push-in socket integrated into the housing and a screwed-in connector. The stem is blow-out proof and mounted externally. The push-in socket/nipple connection variant allows for quick installation into corresponding HP piping systems. With the optional safety locking handle (SIBK-C), in addition to the one-sided detent in the closed position, a two-sided locking of the positions can also be achieved. Also available with lockability.

Technical Data

Design Type

15 – Socket connection – Nipple connection
16 – Socket connection – Socket connection

Connection Types

Steck-O connector

Nominal diameter

DN 10-31 (32)

Material

Steel

Pressure Ratings

PN max. 500

Temperature Range

Standard: -10°C to +90°C
On request: -50°C to +250°C

Application Range

Liquids: Fluid group 2 according to PED 2014/68/EU Article 13
Gases: Fluid group 2 according to PED 2014/68/EU Article 13
Resistance to the flow medium must always be ensured.
